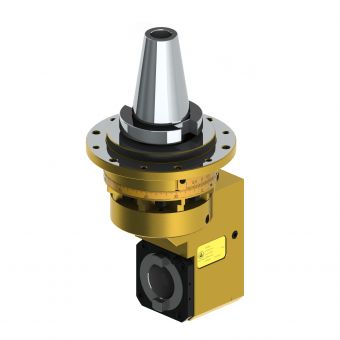

◎ SK50-SK40 Aluminum Offset Flange-Mounted Angle Head (AHK Type)
◎ Run-out：0.002 mm
◎ Material：Aerospace Alu. Alloy & Ductile Cast Iron
◎ R.P.M.：Max. 4000 RPM
◎ Torque：Max. 60 Nm
◎ Drilling：Max. 20 mm
◎ Tapping：Max. M16
◎ Gear Ratio：1：1
◎ Standard Accessory：Tool-Locking Plate, L Type Wrench
◎ Output Rotation：Same as Input Rotation

◎?The output interface of Taper40 ensures wider-angle application with various SK40 tool holders.
◎?Mount directly on the machine spindle surface. Rugged body construction for heavy duty cutting.
◎?Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
◎?Offset design ensures compact body and largely eliminates interference.
◎?Offset design eliminates the protrusion of tools and enhances working rigidity.
◎?Special tool-locking design ensures easier too engagement and release.
